ST-35 Products Archives - Dynakit Parts

5 Lug Strip ST-35
(Center ground) Cadmium plated lugs on phenolic strip. 3/8″ spacing with #6 screw hole. Note: 30 degree angled lugs for (ST-35) & (SCA-35).
$2.50
View Product
Black Rubber Feet
Very similar to the original dynakit push-on rubber feet.(9/16″ o.d. x 1/8″ ht) fits hole size of .180″ – .288″ dia. Sold in sets of (4) only.
$3.00
View Product
Out of Stock

C-354 CHOKE
D.C. filter choke. 1.75 Henries, 200mA. DC current, 62 ohms, 400 vdc (max) 10% Tolerance. For mounting and wiring refer to dimensional & electrical schematic. Exact drop-in replacement for Dynakit ST-70, Mark III/IV. Limit of (2) Two chokes per order during…
$35.00
View Product
Out of Stock

DYNAKIT ST-35 BOTTOM COVER
Stainless Steel (non-magnetic) mirror finished bottom cover. Includes revised style silkscreen denoting 4 & 8 Ohm outputs and original style rubber feet. Need a replacement Stainless Steel bottom cover with original style silkscreen denoting 8 & 16 Ohm outputs? Call…
$45.00
View Product
Out of Stock

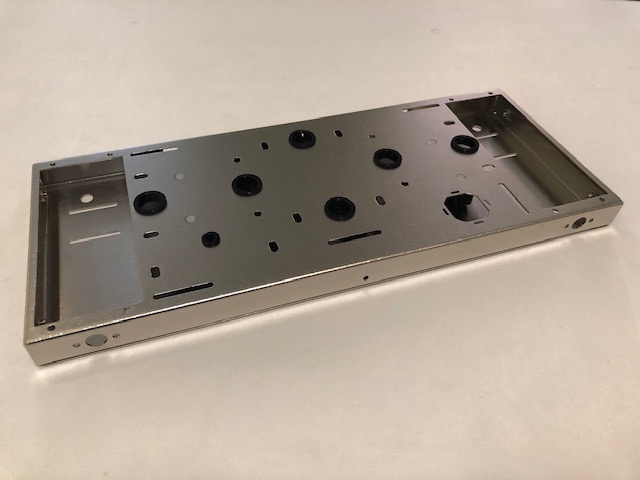

DYNAKIT ST-35 CHASSIS
Nickel plated steel chassis and bottom cover. Includes revised style silk-screened cover denoting 4 & 8 ohm outputs. Includes rubber feet, hole grommets & cover mounting hardware. Also includes mounting holes for C-354 choke.
$120.00
View Product
Out of Stock

DYNAKIT ST-35 CHASSIS
Stainless steel (non-magnetic) mirror finished chassis and bottom cover. Includes revised style silkscreened cover denoting 4 & 8 OHM outputs, cover mounting hardware, rubber feet & hole grommets. UPDATE: New holes added for mounting and wiring of our C-354 choke.…
$135.00
View Product
DYNAKIT ST-35 COVER
Top vented cover, original textured dark brown color. Includes Dynakit™ ST-35 foil label. 2009 Update: We have added slotted mounting holes to the cover to provide for added vertical height adjustment (clearance) above the transformers. Limited production Black textured covers…

View Product

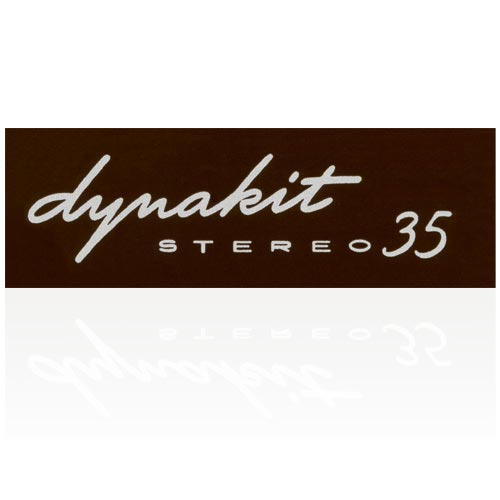

DYNAKIT ST-35 LABEL
DYNAKIT ST-35 FOIL LABEL…New.. Peel & Stick style adhesive…Size: 7/8″ x 2-1/2″
$7.50
View Product
MULTI-SECTION CAPACITOR
60/40/20 uF @ 450 vdc 100 uF @ 25 vdc fp (twist-lock) can style (1) 60 uF, (1) 40 uF, (1) 20 uF @ 450 vdc (1) 100 uf @25 vdc 1 3/8″ dia. x 3″ ht (from base) Fits:…
$50.00
View Product
Out of Stock

PA 774 POWER XFMR
120 vac 50/60 hz primary, secondary 330-0-330 vac @ 180 ma (dc) rectified, plus (2) 6.3 volt taps @2.5a. For mounting and wiring details, refer to dimensional/electrical schematic. Exact drop-in replacement for Dynakit ST-35 and SCA-35 amplifiers. Includes FREE isolation mounting kit.…
$130.00
View Product
PB-028-1 POWER XFMR
240 vac 50/60 hz primary, secondary 330-0-330 vac @ 180 ma (dc) rectified, plus (2) 6.3 volt taps @2.5a. For mounting and wiring details, refer to dimensional/electrical schematic. Exact drop-in replacement for Dynakit ST-35 and SCA-35 amplifiers. Includes FREE isolation mounting…
$150.00
View Product
PC-13 ST-35 CC Resistors
NEW Polyimide Brown PC Board! Includes carbon composition resistors, metalized film capacitors, silver mica caps, Micalex tube sockets and hardware. Priced & Sold in Pairs only. Our PC-13 boards will also fit either the original or our New SCA-35 chassis!…

View Product
PC-13 ST-35 MF Resistors
NEW Polyimide Brown PC Board! Includes precision metal film resistors, metalized film capacitors, silver mica caps, Micalex sockets and hardware. Priced & Sold in pairs only. Our PC-13 boards will fit both the original and our new ST-35 chassis. Note:…

View Product
Power Cord + inline Switch (120 vac)
Standard 18/3 SVT, 120 vac. (0.250″ dia. x 6′ 0″ lt.) Includes inline Heavy Duty on/off switch rated 6A/125 vac, rubber grommet, cable strap and hardware. UL listed. “Nice upgrade for ST-35”.
$29.50
View Product
Power Cord + inline Switch (240 vac)
Standard 18/3 SVT, 250 VAC (0.240: dia. x 6’ 0” lt.). Includes Heavy Duty inline on/off switch rated 5A/250 VAC, rubber grommet, cable strap and hardware. UL/CSA listed with Euro color coded leads. (Plug not included). “Nice up-grade for the…
$25.50
View Product
Power XFMR Isolation Kits
Reduces mechanical generated “HUM” and noise. Mounts between chassis and transformer with 8-32 hardware provided. Fits both original and new production DYNAKIT amplifiers. Instructions included. Sold as a set of four (4) mounts and hardware. SELECT “Small Type” FOR PA-774…

View Product
RCA JACK ST-35 ORIGINAL
Original NOS Dynakit ST-35 replacement RCA jack. Cadmium plated with Phenolic insulator. Also a direct replacement input jack for the Dynakit MK IV amplifier and the DynacoPAM-1 mono preamplifier. Sold individually. Note: Due to limited supply, purchase is limited to…
$3.50
View Product
SHOCK SAFE FUSE HOLDER (Special)
Shock-safe panel mount style. 3AG fuse type (.0250″ dia x 1.250 lt). This fuse holder has a special threaded body & locking nut to fit both the original & new Dynakit ST-35 & SCA-35 models. UL listed/CSA Approved. For other…
$8.50
View Product
ST-35 BIAS CIRCUIT KIT
Includes (2) 1 amp, 1000 vac silicon diodes, terminal strip & resistors. Choice of either carbon composition or metal film resistors. Wiring pictorial included.

View Product
Out of Stock

ST35 Bias Control Upgrade
The ST35-BCU Bias Control Upgrade Kit is engineered to fit the new or original Dynakit® ST-35 amplifier. The ST35-BCU employs an adjustable fixed bias circuit which allows for user adjustment of the bias setting of each (EL84) output tube via…
$85.00
View Product
Out of Stock

Z-565 OUTPUT TRANSFORMER
17.5 watts, 8000 ohm c.t. “Updated Design” with 4 and 8 ohm output taps. For mounting and wiring details, refer to dimensional/electrical schematic. Exact drop-in replacement for Dynakit ST-35 and SCA-35 amplifiers. Beware of “Other” vendor’s Z-565 replacements which will…

View Product
